# Microbubbles in Paint Film

{% hint style="info" %}
This is a living document. It is maintained and updated without notice. It's best to refresh pages to ensure delivery of the latest iteration from the CDN Content Delivery Network in your area
{% endhint %}

Post a photo online of a cabinet door with tiny bubbles in it and watch what happens. Within minutes someone will say "contamination." Someone else will say "offgassing." The words sound technical, so they feel like answers. They aren’t.

Microbubbles are not contamination. Contamination causes fisheyes and craters—the coating pulls away from something on the surface. Microbubbles are internal voids trapped inside the film. The coating didn't run from anything; it locked bubbles in.

The real question isn't whether it’s "offgassing"—it’s determining where the bubbles came from and why the film set before they could escape. If you can’t answer those questions, you haven’t diagnosed the defect. You’ve just named a phenomenon.

It’s always one of two things:

1. **Entrained Air (The Pre-Spray Failure)** If those bubbles were visible the moment the wet film hit the surface and they are evenly peppered edge-to-edge, that is entrained air. The bubbles were already in the liquid before you pulled the trigger, usually from aggressive drill mixing or a leak in your pump seals.
2. **Substrate Offgassing (The Post-Spray Failure)** If the bubbles grew or intensified a few minutes after you walked the door to the rack, that is likely substrate offgassing. This kind of failure is usually localized over MDF edges, joints, or filler materials. The substrate is "exhaling" into the film because of moisture, trapped air, or a temperature differential.

In both cases, the defect only survives because the film set early. High solids, heavy coats, or fast surface skinning from fans and heat trap the bubbles before they can vent. If the distinction isn't clear, you might continue attributing the issue to contamination when it's actually related to viscosity and cure rate. You’ll keep saying "offgassing" when the real problem is that you whipped air into the bucket or your film skinned too fast.

### Overview

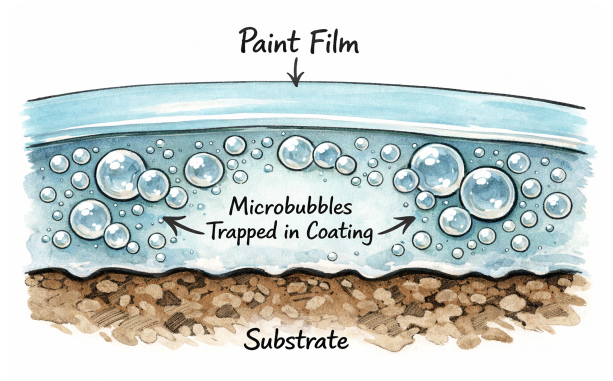

Paint films ideally dry to smooth, uniform layers, but sometimes they contain small *microbubbles.* These microscopic gas pockets scatter light, leaving the coating hazy or mottled and creating weak points that can compromise adhesion and durability. Understanding how microbubbles form is essential for formulating and applying coatings that meet aesthetic and performance requirements.

Microbubbles also appear in other fields (medicine, water treatment, cleaning, etc.), but the properties that make them useful elsewhere (large surface area and high internal pressure) are problematic in paint films because the bubbles become trapped and cannot escape before the coating cures. The following sections define microbubbles, explain their behavior in coatings, and synthesize research on the mechanisms that introduce them.

<figure><img src="https://474306782-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3YVknxQjTY2AXSlwtWgR%2Fuploads%2FO9DQXxKPLUAwaFRUzvgC%2FScreenshot%202026-03-02%20at%2010.19.58%E2%80%AFPM.png?alt=media&#x26;token=eb5f88f7-e565-48dc-b645-9008ab22915b" alt=""><figcaption></figcaption></figure>

### What are microbubbles?

* **Size definition.** International standards and reviews classify *microbubbles (MBs)* as gas-filled bubbles with diameters between 1 µm and 100 µm; nanobubbles are <1 µm and are often grouped with microbubbles in the term *micro‑nanobubbles*. Microbubbles are larger than nanobubbles but smaller than the bubbles visible to the naked eye (millimeters in size). Their small size means they have high surface area relative to volume.
* **Physicochemical characteristics.** Micro‑nanobubble research notes that these bubbles have high internal gas pressure and often carry a negative surface charge, which contributes to their remarkable stability and allows them to persist in liquids for minutes to hours. The high pressure means gas in a microbubble can readily dissolve into the surrounding liquid, causing bubbles to slowly shrink rather than rise and burst. For example, a 2023 study of bubbles trapped in spray‑coated films found that small bubbles “shrink because smaller bubbles have higher internal gas pressure due to surface tension,” so dissolved gas diffuses out until the bubble disappears. Microbubbles ascend through liquids slowly due to their low buoyancy and may collapse via “shrinking collapse” rather than bursting.
* **Optical effect in coatings.** Microbubbles scatter and refract light; each microbubble behaves like a tiny lens that disrupts the uniform appearance of transparent or translucent coatings and reduces color warmth. In some specialized coatings, microbubbles are intentionally created to enhance light scattering (e.g., highly reflective microbubble coatings used in thermal control), but in most paint films they are considered a defect.

### Behaviour of microbubbles in film coatings

Once trapped in a wet paint film, microbubbles evolve differently from large bubbles:

1. **Shrinking via dissolution.** According to a theoretical analysis based on the Young–Laplace equation and Henry’s law, microbubbles shrink because the high internal gas pressure drives gas to dissolve into the surrounding liquid. The dissolution rate increases as bubble diameter decreases, so microbubbles disappear faster than larger bubbles when conditions allow gas to diffuse out.
2. **Immobility and trapping.** Because microbubbles are so small, they rise through viscous paint much slower than the coating cures. They therefore become permanently trapped beneath the surface. The resulting small cavities create weak points that may later become blisters if moisture or solvent vapors accumulate under the cured film.
3. **Light scattering.** Microbubbles scatter light, producing a milky or frosted appearance. In clear wood finishes, microbubbles reflect and refract light, reducing color depth and warmth.

### Mechanisms causing microbubbles or bubbles in paint films

#### 1. Air entrainment during mixing and pumping

* **Excessive agitation and vortex formation.** Mixing a coating at high impeller speeds or using a drill mixer can pull air into the liquid. Laboratory mixing notes that intense agitation and a deep vortex incorporate air and increase foam. Off‑center impeller placement, using baffles and moderating speed, reduces vortex depth and minimizes entrained air. Similarly, industrial mixing guidelines emphasize that high agitator speed improves mixing but also increases foam and entrained air; off‑center mixing and applying vacuum can minimize entrainment.
* **Leaky seals and bends in pipes.** Industrial coatings experts warn that air can be drawn into the fluid through leaking mixer seals or pipe joints. Process engineers recommend checking gasket integrity, avoiding abrupt bends, and positioning pumps to reduce suction head.
* **Use of surfactants and defoamers.** Surfactants reduce surface tension and stabilize bubbles, so high surfactant content in waterborne coatings increases microbubble formation. Adding defoamers or switching to acetylene‑diol surfactants can break bubbles, but defoamers can contaminate the product and must be used judiciously.

#### 2. Air entrapment at the substrate interface

During application, air may be trapped between the liquid coating and the substrate because of poor wetting or surface roughness. If the coating head or applicator does not make a tight seal against the substrate, air can be sucked in and trapped beneath the wet film. A vacuum at the nip or using a backing roller helps remove entrapped air. Highly porous or rough substrates (e.g., concrete, open‑grain wood) contain air voids; as the coating warms, trapped air expands and forms bubbles on the backside of the coating.

#### 3. Spray application and droplet impact

When coatings are sprayed, thousands of droplets impinge on the substrate. High‑speed video studies show that droplets impacting surfaces with nanoscale roughness generate microbubbles during the spreading phase; as the droplet spreads, tiny air pockets become trapped and coalesce into microbubbles within microseconds. Rougher surfaces and faster impact velocities produce more microbubbles. During spray painting, using high atomization pressure to create small droplets and reducing droplet velocity can lessen microbubble generation.

#### 4. Rapid surface drying (skinning)

Coatings that dry quickly at the surface form a rigid skin that traps solvent vapors or gases underneath. The underlying solvent heats up, volatilizes, and builds vapor pressure, leading to blisters or bubbles. Industrial coatings literature notes that hot ambient temperatures or high wind can cause the surface to dry too rapidly, creating a skin and trapping solvent. Conversely, in cool or humid conditions the coating may remain tacky; if a subsequent layer is applied before the first layer releases its solvent, trapped solvent can later volatilize and produce bubbles. Sherwin‑Williams’ problem solver similarly states that high heat during application causes bubbles because the surface dries too fast, and over‑brushing or over‑rolling can introduce air and trap it.

#### 5. Porous substrates and moisture

Porous substrates such as concrete, plaster, or open‑grain wood contain moisture and air. When coated, this moisture can vaporize and form blisters or bubbles. Osmotic blistering occurs when water permeates the coating and accumulates at the substrate–film interface; as humidity drops and temperature rises, the trapped water expands, forming blisters. Trapped air or moisture in porous substrates can also expand when heated, causing bubbles. To mitigate these problems, surfaces should be properly sealed or primed before applying high‑gloss coatings; waterborne primers with lower solids content help wet absorbent woods and reduce microbubbles.

#### 6. Chemical reactions within the coating

Certain coating chemistries generate gas during curing. Moisture‑cured urethane coatings contain isocyanate groups that react with atmospheric moisture to form carbon dioxide gas; this reaction can produce numerous microscopic bubbles throughout the film and create a “Swiss cheese‑like microstructure." Similarly, aliphatic polyurethane coatings can foam when applied in moist conditions because they cure too quickly and trap CO₂. .

#### 7. High solids content, viscosity and improper additives

Waterborne coatings with high solids content (low water content) dry quickly and have high viscosity, so microbubbles cannot dissolve or rise before the film cures. Reducing the solids content by 2–3% can significantly decrease microbubble formation. High surfactant concentrations stabilize bubbles; switching to low‑foaming surfactants or reducing surfactant levels lowers microbubble density. Solvents such as butyl cellosolve and butyl carbitol have been reported to increase microbubble density.

#### 8. Application equipment and technique

**Compressors and spraying.** Contaminated compressed air (oil/water) or moisture in air lines can introduce bubbles into the spray stream; filters and dryers should be used. High air pressure or large spray tips create larger droplets that tend to retain bubbles. Adjusting atomization, reducing paint output, and using smaller nozzle diameters produce finer droplets and less bubble retention.

**Brushing and rolling.** Vigorous brushing, over‑rolling, or using the wrong roller nap can introduce and trap air. Sherwin‑Williams advises stirring paint slowly, selecting the correct roller nap, and slowing the application speed when many bubbles appear.

#### 9. Curing and flash‑off conditions

After application, coatings require a *flash‑off* period for solvent to escape before curing. Conformal coating experts caution that insufficient flash‑off time or curing too quickly causes solvent to be trapped and leads to bubbles. Water‑based materials can handle accelerated curing, but solvent‑based coatings require slower cure profiles; thick areas or overlaps should be allowed to cool gradually so gases can escape. Nordson also notes that boards or substrates containing moisture should be baked or dried before coating to prevent gas release during cure.

### Preventing and mitigating microbubble defects

1. **Optimize mixing and material handling.** Use moderate mixing speeds and off‑center impeller placement to minimize vortex formation and air entrainment. Install baffles in tanks, ensure seals and pipe joints are tight, and avoid abrupt bends that could introduce air. Employ vacuum mixing or nitrogen blanketing to remove entrained air before coating application.
2. **Control formulation.** Adjust solids content to allow microbubbles to collapse or dissolve; reduce by 2–3% when necessary. Use low‑foam surfactants and select solvents and diluents that do not stabilize bubbles. Add defoamers carefully; these chemicals suppress foam but may introduce contaminants or alter film properties.
3. **Prepare surfaces and substrates.** Clean and dry substrates thoroughly. Prime porous materials to reduce absorption and entrapped air. For highly absorbent woods, apply a primer or basecoat with lower solids to slow drying and reduce microbubbles. Moisture‑sensitive boards or components should be baked or dried before coating.
4. **Control environment and curing.** Apply coatings under recommended temperature and humidity ranges to prevent rapid surface skinning or slow solvent release. Provide adequate flash‑off time before curing or overcoating, especially for solvent‑based coatings. Avoid curing profiles that heat too quickly and trap gases; instead, use gradual ramps or allow thick areas to cool slowly.
5. **Use proper application equipment and technique.** Maintain clean, dry compressed air; incorporate filters and moisture traps. Adjust spray pressure and nozzle size to create fine droplets and reduce bubble retention. Stir paint slowly and avoid over-brushing or over-rolling; choose appropriate roller naps for the substrate. When high‑speed spray is required, consider electrostatic or airless spraying with the correct tip size to minimize droplet impact and microbubble formation.
6. **Consider chemical effects.** Be aware that moisture‑cured urethanes and certain polyurethanes generate CO₂ during reaction; apply under controlled humidity and allow gases to escape. Use formulations that balance adhesion and fluidity; high adhesion may trap microbubbles, so adjust resin and solvent ratios accordingly.

### Conclusion

Microbubbles are gas cavities 1–100 µm in diameter that exhibit high internal pressure, negative surface charge, and slow buoyant rise. In paint films, they are undesirable because they scatter light and act as weak points. Microbubbles in coatings shrink by dissolving gas into the surrounding liquid but often become trapped before escaping, leaving visible defects. The research reviewed here shows that microbubbles arise from a combination of physical, chemical, and environmental factors: air entrainment during mixing or pumping, air entrapment at the substrate interface, droplet impact on rough surfaces, rapid surface drying, porous substrates releasing air or moisture, gas‑generating reactions within the coating, and high viscosity or solids content. Equipment issues (contaminated air lines, inappropriate spray nozzles) and poor application technique (over‑rolling, insufficient flash‑off) exacerbate the problem.

Preventing microbubble defects requires a holistic approach: optimizing mixing to minimize air entrainment; adjusting formulation (solids content, surfactants, and solvents) to promote bubble collapse; preparing and sealing substrates; controlling environmental and curing conditions; and using appropriate application equipment and techniques. Understanding the mechanisms by which microbubbles form provides the foundation for designing coatings and processes that deliver smooth, defect‑free paint films.

{% hint style="info" %}
In the coating industry the terms entrainment and entrapment both refer to unwanted air in the film, but they describe different mechanisms for how that air gets there:

* **Air entrainment** means that air is drawn into the liquid *before* it reaches the coating head.  The PFFC article explains that entrained air is introduced into the fluid in the mixing tank or transfer lines.  Excessive agitation, leaky seals, or bends in the piping can pull air into the coating stream, and once air is in the fluid it is hard to remove .  Operators combat entrainment by using gentle mixing, allowing material to settle, blanketing the tank with nitrogen, keeping seals tight and piping runs smooth, and sometimes heating and applying a vacuum to degas the fluid .
* **Air entrapment** refers to air that becomes trapped between the liquid coating and the solid substrate during application.  It occurs when poor wetting, roughness or an imperfect seal between the applicator and the substrate leaves pockets of air at the interface.  PFFC notes that entrapped air can be reduced by matching the surface energies of the fluid and substrate and by applying a vacuum at the point of interaction to draw air out .  If the coating head is misaligned, entrapped air can create a periodic “herringbone” defect; adjusting the head and substrate to achieve a proper seal and slowing the line speed helps eliminate it .

In short, **entrainment** is about air incorporated into the coating before it is applied, while **entrapment** is about air pockets formed at the coating–substrate interface during application.
{% endhint %}

### Sources

Amagai, K., Yano, A., & Noguchi, T. *Behaviors of Bubbles Trapped in Film Coating During Spray Gun Coating and Its Influences on Coating Defects.* Coatings (MDPI), 2023.

Singh, B., Park, G., Ryu, J.-H., & Park, M.-H. *Micro-Nanobubble Technology in Surface Cleaning and Defouling.* Applied Sciences (MDPI), 2025.

Miller, M. *Coating Matters: How to Avoid Bubble Defects.* Paper, Film & Foil Converter (PFFC), 2011.

ROSS Mixers. *Reduce Foaming and Air Entrapment During Mixing.* Technical guidance document.

Sherwin-Williams. *Paint Problem Solver—Bubbles and Blisters.* Technical bulletin.

Nordson Corporation. *Conformal Coating Troubleshooting: Bubbles, Blisters and Voids.* Application guide.

PCI Magazine. *Microbubbles in Wood Coatings: Causes and Solutions.* Industry article.

Nature. *Bubble Formation and Scale Dependence in Free-Surface Air Entrainment.* Research article.

### Diagnostic Intake Form

*Diagnosing a microbubble problem requires more than a photo. Before asking for help on groups or forums, work through the* [*companion intake form*](https://jackpauhl.gitbook.io/archive/field-notes/troubleshooting/microbubble-diagnostic-intake)*—and collect the specific information needed to determine where the bubbles came from and why they cured in the film.*
